Weighbridge

Weighbridge
Weighbridge
Product Code : WB 01
Brand Name : ESSAE
Product Description
Weighbridge

With the help of our well-trained professionals, our firm has been able to manufacture, supply and export Weighbridge, Road Weigh Bridge, In Motion Road Weighbridges, Off-Road Weighbridges. It is manufactured using high-grade raw materials incorporating latest technology to ensure its quality. Offered bridge is suitable for measuring the weight of loaded or unloaded trucks and other means of transportation. We conduct different quality checks on our Weighbridge so that potential flaws can be easily eradicated and quality as per the industry laid norms can be assured.

Salient features:

  • High operational accuracy
  • High efficiency, Reliable operations
  • The modular design is Orthogonally Isotropic & Innovative
  • Ownership Offered at very low cost'
  • Using NASTRAN & FEA - ANSYS it is Designed
  • It is specially designed for CLC concentrated bearing load capacity of 20tons per axle
  • Used high Tensile steel of 410MPa l compared to 250MPa Mild Steel for Fabrication
  • Fully welded modules using High Tensile welding wires
  • Offering rigidity to platform the modular Concept offers mobility and extension platform
  • Shorter ramps are required for sleek design
  • Ensures highly durable compared with conventional model/structures
  • For Pit-less model designs it is also available
  • Ease of operation is offered through TM 987 indicators

Below mentioned is the technology used for ensuring high reliability with accuracy of measurement system.

Prime Locations in India:-

  • Ahmedabad
  • Pune
  • Ludhiana,
  • Bhuvaneshwar
  • Delhi
  • Cochin
  • Chennai
  • Mumbai

Double ended shear beam load cells

The load cell assures long life due to its compact, simple design and rugged hermetically sealed construction. The advanced tension link mounting arrangement ensures reliability to weight measurement, smooth performance of the load cell & high accuracy.

Model

TM-969

Size of the Platform

7.5m x 3m, 9m x 3m, 12m x 3m, 16m x 3m, 18m x 3m

Capacity (tons)

40, 50, 60, 100, 120, 150

Interval (kg)

5, 10, 20

Type of load cell

Double Ended Shear Beam With IP 68 protection

Accuracy

As per OIML R-76, Class III - Medium

Non Linearity & Repeatability

0.05%

Type of Platform

Steel Based & Concrete Based

Cables used

4 core shielded with SS Armor protection

Out Door Display (optional)

25-100mm Seven segment RED LED

ESPD-30 (Weighing System Surge Protection Device)

  • This Protect the load cells from transient surges caused due to lightening
  • Without maintenance repeated auto re-setting operation
  • Through high surge absorption capacity there is reliable protection
  • System accuracy remaine unaffected

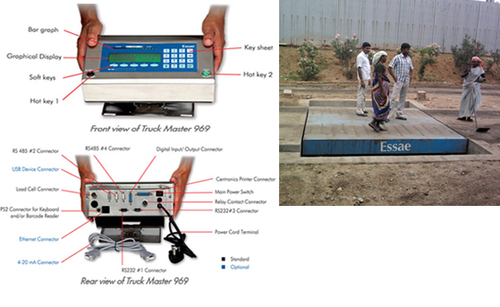

TM-969 (Truck Master 969)

  • Electronic weight indicator makes work cheaper, faster & simpler and its user-friendly.
  • Without connecting to PC the standalone operation is possible
  • An effective truck data management as over 20,000 records can be processed, stored & retrieved
  • Bar graph & Graphical Display, Soft keys, Hot key 1, Hot key 2 & Key sheet
  • Ethernet & networking interface (RS232, RS485)
  • For faster data entry we have standard alphanumeric keypad
  • It can be connected directly to the printer
  • PS2 keyboard connectivity is optional
  • Attractive Stainless Steel enclosure

WeighSoft

  • Supports MY SQL, MS-SQL, POSTGRE SQL ORACLE, SYBASE
  • Ticket transactions can be done online and single point
  • Data fields can be defined by the user which are to be captured for the ticket
  • The system allow the entry of Supplier, Vehicle, Material,  and shift details
  • Formula fields can be created by user
  • Reports can be viewed based on specific queries
  • For different levels of users the security mechanism is well-defined
  • Web Camera Integrated
  • Compatible of SAP/ERP.
